3L AutoBox Cleaning System
PRODUCT DESCRIPTION

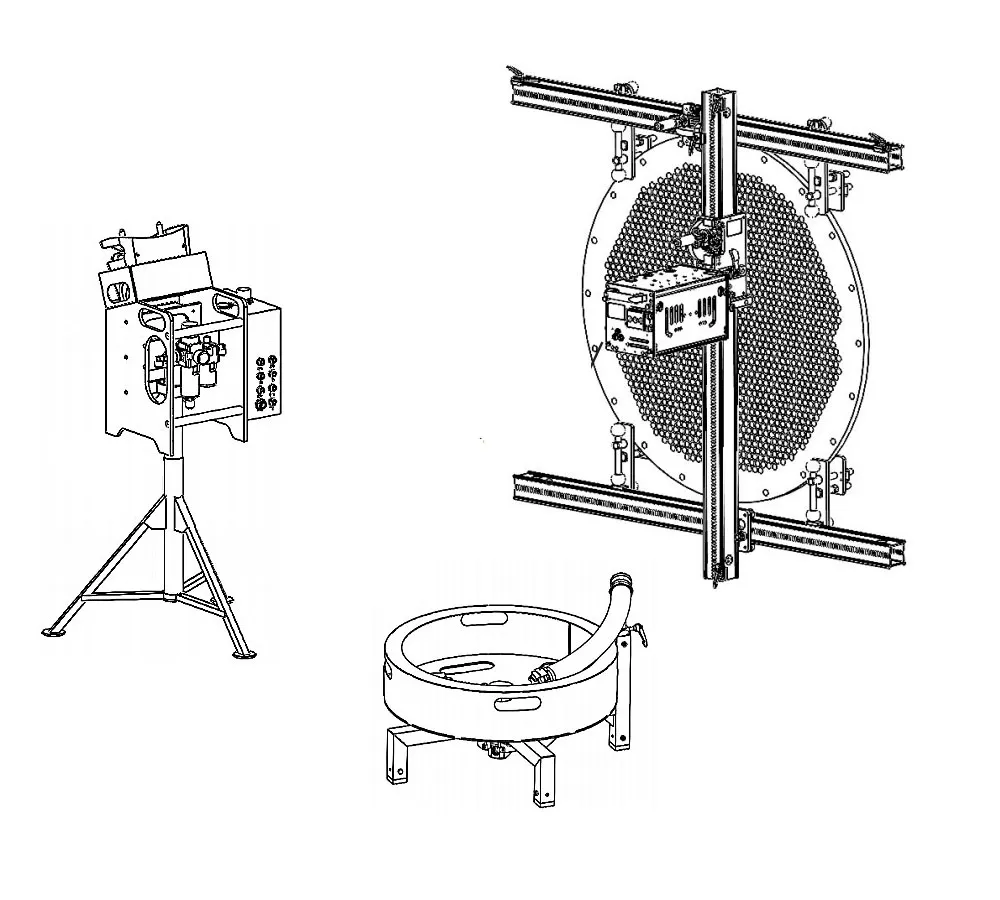

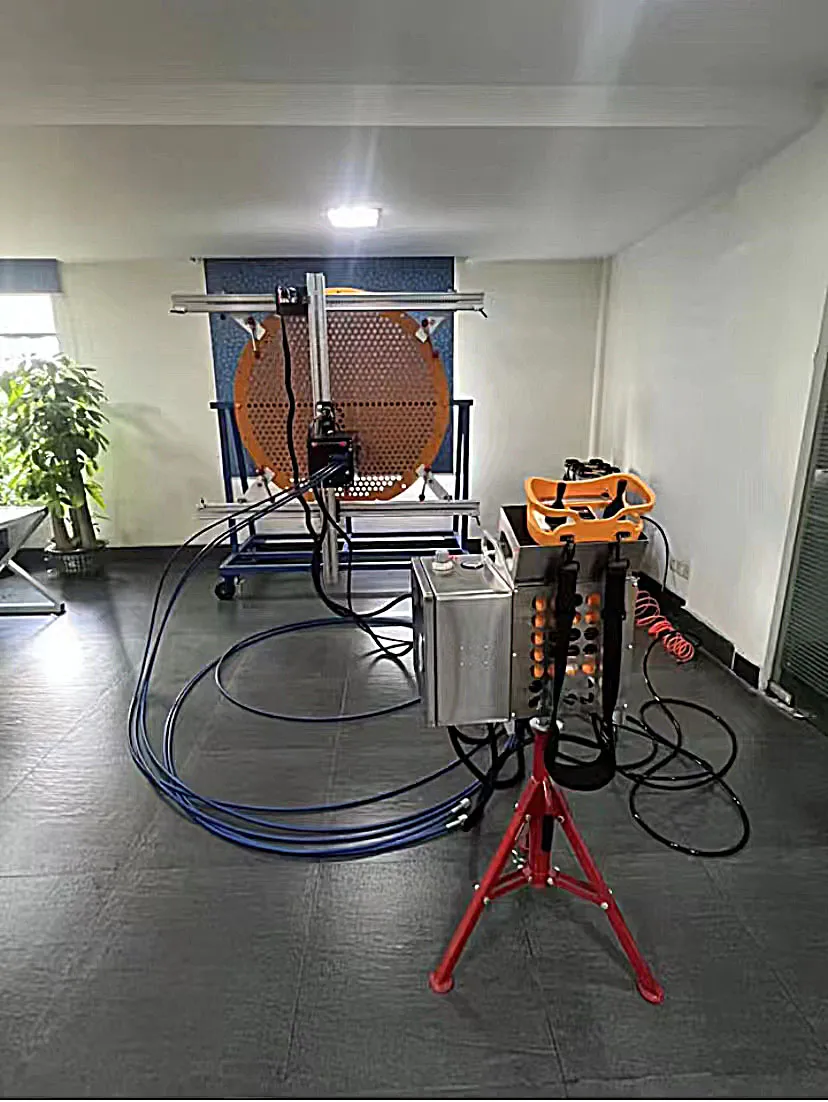

3L AutoBox Cleaning Systems is a semi-automated system for tube and finned fan heat exchanger cleaning applications. It is designed for use in three -, two - or single-tube high-pressure hoses with an emphasis on portability, ease of installation and safety.The 3L host can be used for any rated pressure high pressure hose, high pressure hose specifications range from 3/2 to 8/6. 3L AutoBox are used in conjunction with various types of rotary cleaning nozzles and our lightweight positioners to provide safe and efficient cleaning in the harshest heat exchanger cleaning environments.
3L AutoBox Cleaning Systems is a semi-automated system for tube and finned fan heat exchanger cleaning applications. It is designed for use in three -, two - or single-tube high-pressure hoses with an emphasis on portability, ease of installation and safety.The 3L host can be used for any rated pressure high pressure hose, high pressure hose specifications range from 3/2 to 8/6. 3L AutoBox are used in conjunction with various types of rotary cleaning nozzles and our lightweight positioners to provide safe and efficient cleaning in the harshest heat exchanger cleaning environments.
Product Details
TECNICAL DATA AND OPTIONS
● 3L AutoBox host is equipped with an imported pneumatic motor from German
● Compatible Nozzle size are BN 9.5, BN13, BN15, BN18.
● 3L host design for the synchronous belt is over 300 hours
● with 3 hose 20meter long, can choose size
| Parameter | 3L AutoBox Host |
| High-pressure hose inlet speed | 0.09-0.90 m/s |
| High-pressure tube size range | 3/2-8/6 |
| Maximum diameter of the high—pressure pipe buckle head | 19 mm |
| High-pressure hose return speed Push and pull force in and out of the pipe |
0.09-0.90 m/s |
| Adjustment range of tube spacing | 15-1501b 6-68 kg |
| Maximum use of the air pressure | Two Hose: 0.6-5.0inch.16-127mm Three Hose: 0.6-3.5inch.16-64mm |
| Recommended for using the air pressure | 125 psi 0.86 MPa |
| Host size | 100 psi 0.70 MPa |
| Host weight | L.456 mm x W.250 mm x H.274 mm 29 kg |
TECNICAL DATA AND OPTIONS
● 3L AutoBox host is equipped with an imported pneumatic motor from German
● Compatible Nozzle size are BN 9.5, BN13, BN15, BN18.
● 3L host design for the synchronous belt is over 300 hours
● with 3 hose 20meter long, can choose size
| Parameter | 3L AutoBox Host |
| High-pressure hose inlet speed | 0.09-0.90 m/s |
| High-pressure tube size range | 3/2-8/6 |
| Maximum diameter of the high—pressure pipe buckle head | 19 mm |
| High-pressure hose return speed Push and pull force in and out of the pipe |
0.09-0.90 m/s |
| Adjustment range of tube spacing | 15-1501b 6-68 kg |
| Maximum use of the air pressure | Two Hose: 0.6-5.0inch.16-127mm Three Hose: 0.6-3.5inch.16-64mm |
| Recommended for using the air pressure | 125 psi 0.86 MPa |
| Host size | 100 psi 0.70 MPa |
| Host weight | L.456 mm x W.250 mm x H.274 mm 29 kg |
APPLICATIONS
 |
 |
|
|
Heat exchanger cleaning
Various types of heat exchangers, cooling towers, condensers.
|
|
Oil and Gas Industry
In the production process of the petrochemical industry, due to various reasons, various types of towers, heat exchangers, tank containers, reaction vessels, and pipelines will produce dirt such as polymers, coking, oil scale, water scale, sediments, corrosive substances, etc. If not dealt with in a timely manner, these dirt will cause equipment and pipelines to fail, the production efficiency of the device system to decrease, energy and material consumption to increase, and in severe cases, the process may be interrupted and forced to stop production, causing significant economic losses, and even potentially leading to malignant accidents such as explosions.
|
APPLICATIONS
|
|
|
|
Heat exchanger cleaning
Various types of heat exchangers, cooling towers, condensers.
|
|
Oil and Gas Industry
In the production process of the petrochemical industry, due to various reasons, various types of towers, heat exchangers, tank containers, reaction vessels, and pipelines will produce dirt such as polymers, coking, oil scale, water scale, sediments, corrosive substances, etc. If not dealt with in a timely manner, these dirt will cause equipment and pipelines to fail, the production efficiency of the device system to decrease, energy and material consumption to increase, and in severe cases, the process may be interrupted and forced to stop production, causing significant economic losses, and even potentially leading to malignant accidents such as explosions.
|
